Flat Track 142 Premium Series – Up to 400 lbs. Hanger Styles

Close-Ease - Set of Two(0121-0080)

Soft-closing mechanism to close doors silently and smoothly. The mechanism, concealed behind the track, catches the actuator for gentle, even closing. Door weight capacity of 150 lbs. Recommended 2 per door. Factory or customer installed. (Pictured from rear view)

Privi-Loc(0119-7019)

Sliding door locking system with safety opening feature. Jamb mounted. Available in all finishes except MP 109 and Weathered Rust

Bi-Pass Bracket with Hardware(0120-0026)

Need a door to go in front of another door? Adding this bracket system allows the doors to bi-pass one another. For doors up to 1 ¾” thick. One bracket per mounting hole. Simply increase your header above our standard kit and install.

Available in all finishes

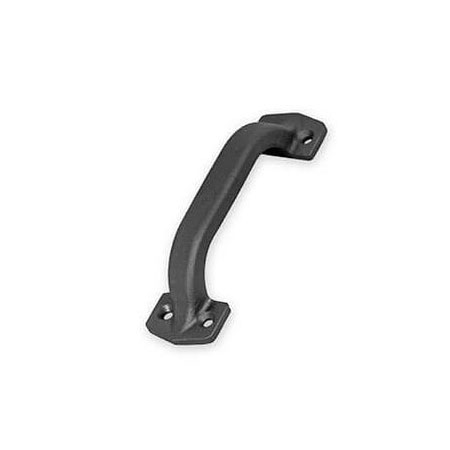

Cast Iron Raised Bow Handle(0117-0054)

Available in all finishes except Brushed Nickel and Stainless

Cast Iron Lower Profile Bow Handle(C95-605)

Available in Black, Painted Bronze and Clear Coat.

Cast Iron Flush Pull Handle(0117-0099)

Available in all finishes except Stainless

Stainless Steel Flush Pull Handle(C95-612)

Available in Stainless Steel.

Strap Handle(0120-0076)

Available in all finishes except Stainless and Weathered Rust

Cradle Guide(0120-0096)

Designed to remove the need to mortise cut along the bottom of the door. It cradles the bottom of the door for vertical wall alignment.

Available in Black.

Door Stop with Cushion for #142 Track(0117-0041)

Track mounted, sturdy stop with cushion to quiet the close. Fixed on the end track mounting hole.

Available in all finishes.

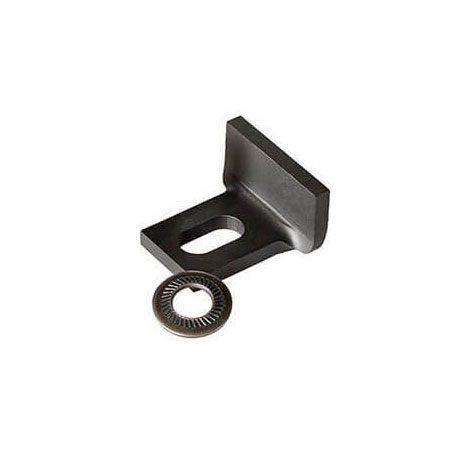

Reversible Adjustable Stop(0120-0029)

Low profile track stop that provides flexibility in door stop placement. Adjusts up to 1” of movement and can be rotated for more range. Designed to also work with bi-pass hardware. Available in all finishes.

Slide Stop(0120-0079)

Designed to guarantee your door stops exactly where you need it to. Simply slide one on from either end, position where you want your door to stop, then secure it down with the hex key/set screws. Add the hole inserts once hardware is in place and you’re done! These also work great with bi-passing/bi-parting.

Available in all finishes.

Splice for #142 Track(0115-0021)

Bracket used to hold two ends of track together for precise alignment. Available in all finishes.

Anti-Jump Block for #142 Track(0115-0033)

Fixed on top of door, hidden behind hanger strap, to keep door on track. Available in Black.

Bottom (FIN) Guide(0119-0082)

Concealed bottom floor guide to secure door. Floor mounted.

Available in Black.

Track Mounting Screws for #142 Track(0316-0046)

3 ½”, 4 ½” and 6” lengths. One per spacer.

Available in Black Oxide, Zinc Oxide and Stainless.

Spacer for #142 Track(0115-0020)

Flange against wall and behind track.

Available in different sizes and in colors similar to standard finishes.

Adjustable Spacer

Designed to accommodate situations where different space requirements between door and wall are affected by door thickness, baseboard/casing thickness or other adjustment needs. Two sizes. Small - 1 1/8" to 1 7/8" allows for 3/4" of adjustment. Large - 1 3/4" to 3" allows for 1 1/4" of adjustment.

Available in:

• Black Oxide
  • Small | 0120-0077
  • Large | 0120-0084
• Zinc Plated
  • Small | 0120-2777
  • Large | 0120-2784
